WH-003-FC Triple Whole House
- Triple Stage Filtration
- Coloured Full Cover
- Various Sediment & Carbon Options
- 10 Yr Warranty

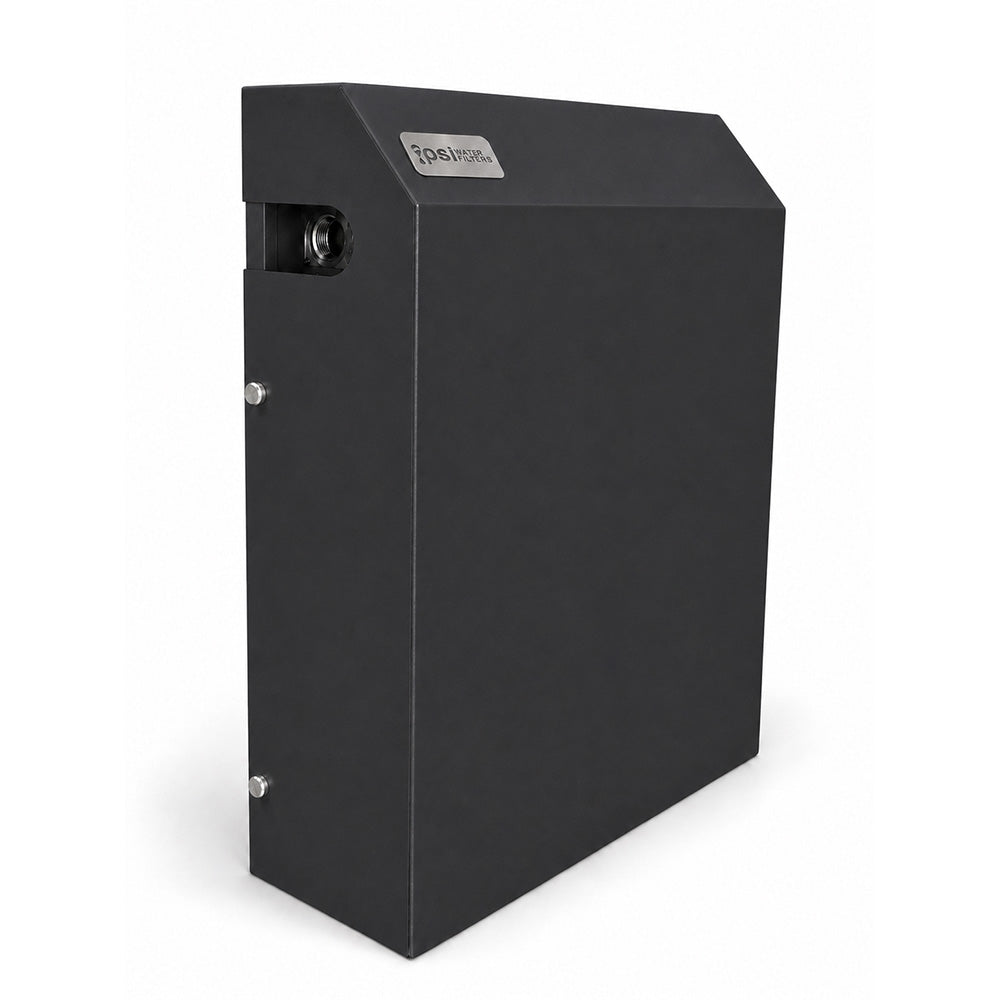

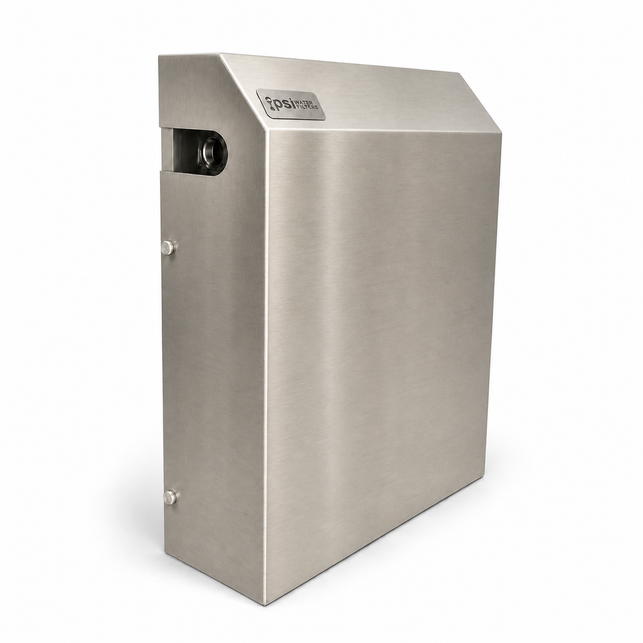

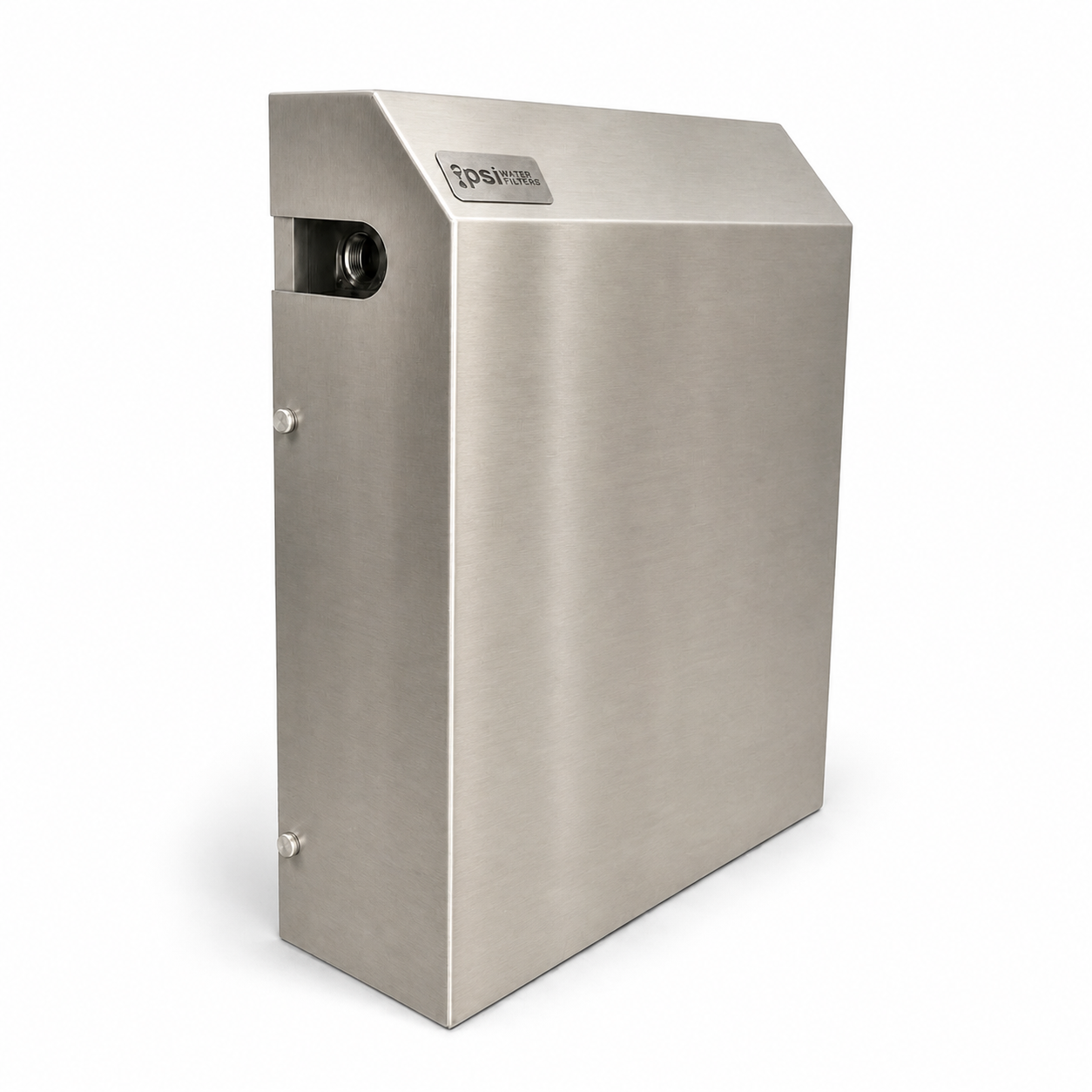

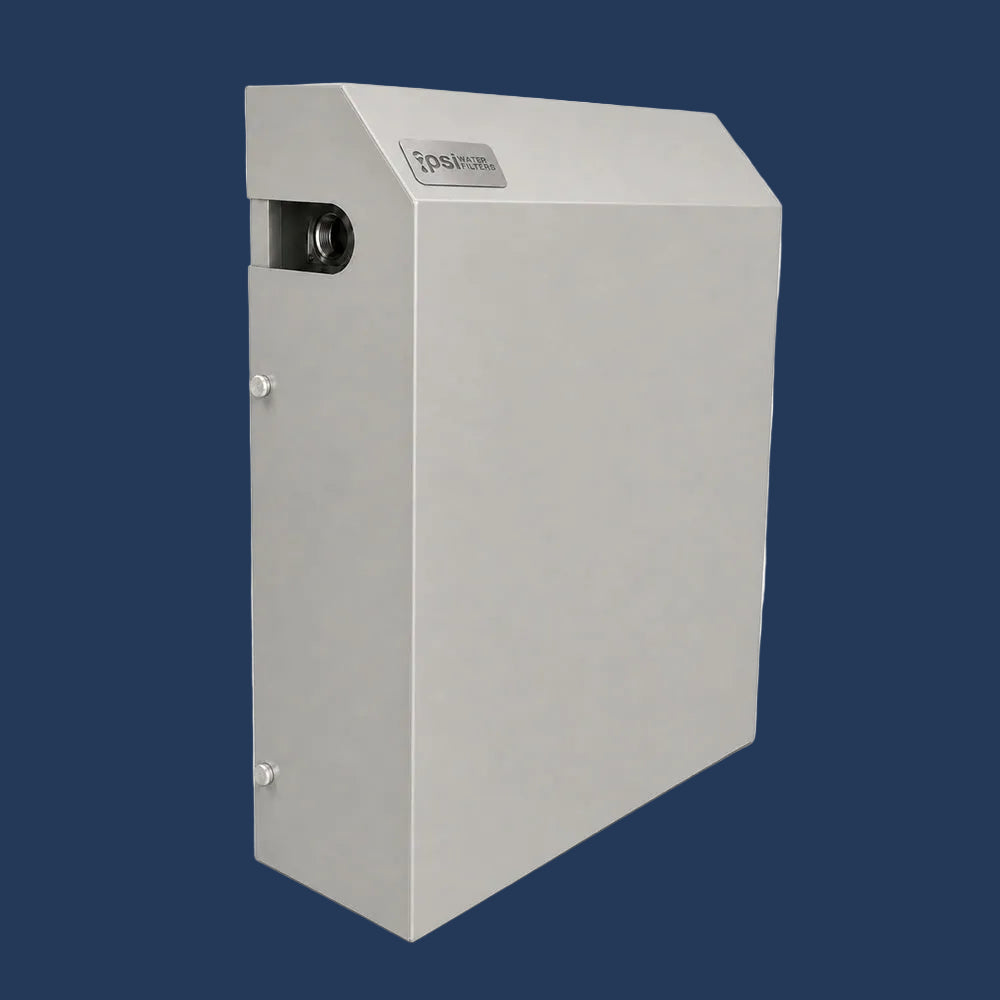

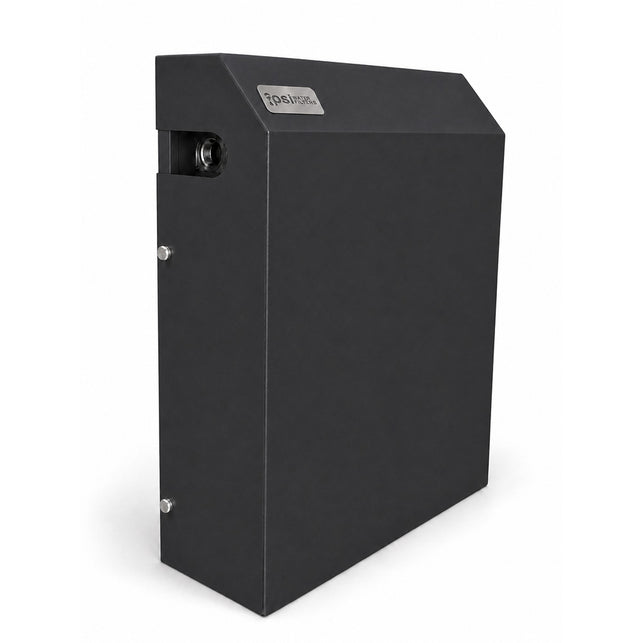

WH-003-FC Triple Whole House System (Full Cover)
Designed for Australian conditions, the WH-003-FC Triple Whole House System delivers flexible whole-home filtration inside a durable full protective enclosure. Built to resist corrosion, heat, coastal air and UV exposure, it’s an ideal long-term solution for families who want cleaner, better-tasting water from every tap, depending on the selected cartridge combination.
The system can be wall-mounted or free-standing and suits most medium to large households. For smaller homes or units, we recommend the WH-002-SS Twin System.
Please note: Cartridges are not included. Choose your Stage 1–3 cartridges using the selection advice below.
Why Choose the WH-003-FC?
- Full protective cover — available in powder-coated colours or stainless steel.
- Industry-standard 20″ × 4.5″ housings — no proprietary fittings or cartridges.
- 1″ BSP 316 stainless steel inlet/outlet ports for high flow rates throughout the home.
- Triple-stage capability — customise cartridges for sediment, chloramine, lead, PFAS, taste, odour, hardness and more.
- Purge valves for easy priming, flushing and maintenance.
- WaterMark-certified components — suitable for Australian plumbing installations.
- 10-year system warranty for long-term peace of mind.
What’s Included
- Triple 20″ × 4.5″ filtration housings
- 1″ BSP 316 stainless steel inlet/outlet ports
- Heavy-duty 304 stainless steel RHS frame
- Powder-coated or stainless-steel protective cover, depending on selected option
- Purge/bleed valves on the filter heads
- WaterMark-certified components
- Compatible with industry-standard 20″ × 4.5″ cartridges
System Dimensions
- Height: 760 mm
- Width: 600 mm
- Depth: 210 mm
Recommended Filter Combinations
Rain, Bore or River Water
- Stage 1 — Pleated sediment filter, 20 micron
- Stage 2 — Polyspun sediment, 5 micron
- Stage 3 — Silver-impregnated carbon
Chlorinated Town Water
- Stage 1 — Polyspun sediment
- Stage 2 — Coconut carbon, Chloramine filter or Aragon
- Stage 3 — Matrikx CTO
Chloramine-Treated Water
- Stage 1 — Polyspun sediment
- Stage 2 — Chloramine carbon
- Stage 3 — Aragon or KDF/Carbon combo
PFAS, Lead & Heavy Metal Reduction
- Stage 1 — 1 micron polyspun
- Stage 2 — KDF/Carbon combo
- Stage 3 — Matrikx PB1 or Aragon
Hard Water, Scale Reduction
- Stage 1 — 1 micron polyspun
- Stage 2 — Water softener cartridge
- Stage 3 — Aragon
PFAS Reduction: The cartridges rated for PFAS reduction include Matrikx PB1 and Matrikx CTO. These can be used in Stage 2 or Stage 3 depending on your setup.
Location-Based Recommendations
Western Australia & South Australia
- Stage 1 — 1 micron polyspun
- Stage 2 — Softener cartridge
- Stage 3 — Chloramine/KDF, mid-spec, or Aragon, high-spec
Eastern States, NSW, VIC, QLD, TAS — PFAS Affected Areas
- Stage 1 — 1 micron or 5 micron polyspun
- Stage 2 — Chloramine/KDF combo or Aragon
- Stage 3 — Matrikx CTO
Replacement Filters
Purchase additional filters here:
Installation Availability
Professional installation is currently available in: Perth, Gold Coast, Brisbane, Sunshine Coast, Sydney, Newcastle, Melbourne, Alice Springs & Tasmania.
Purchasing 2 or more systems attracts a 10% discount, not applicable with other offers.
Warranty
The WH-003-FC system includes a 10-year warranty on the frame and housings. Covers defects in materials and workmanship under normal use. Cover material and finish depend on the selected option. Cartridges and consumables are excluded.
Plumber & Reseller Branding Available
Supplying multiple systems? Eligible full-cover systems can be custom-branded for plumbers, builders and resellers.
The standard laser-cut stainless steel logo panel on the cover can be replaced with your own business branding, giving your installations a professional, branded finish.
Minimum quantities apply. Call 03 6344 4635 for more information, pricing and lead times.
