WH-002-RF-AW Whole House Water System – Outdoor UV Filtration

WH-002-RF-AW Whole House Water System – Outdoor UV & Filtration for Non-Chlorinated Water

Product Overview

The WH-002-RF-AW is a robust, Australian-assembled whole house water purification system engineered for use with non-chlorinated water sources such as tanks, dams, bores, streams, and rainwater—especially where the water quality is unknown or non-potable.

This system delivers a powerful 4-stage treatment process including dual ultraviolet disinfection, high-capacity sediment filtration, and a refillable silver nitrate carbon filter—ensuring clean, safe, and great-tasting water throughout the home.

Key Benefits at a Glance

• ✅ Fully enclosed outdoor-ready unit – no need for internal UV installation
• ✅ Dual Top Aqua 25W UV sterilisation for effective disinfection and system redundancy
• ✅ Treats water from tanks, dams, bores, rainwater, and streams
• ✅ Ideal for unknown or unsafe water sources

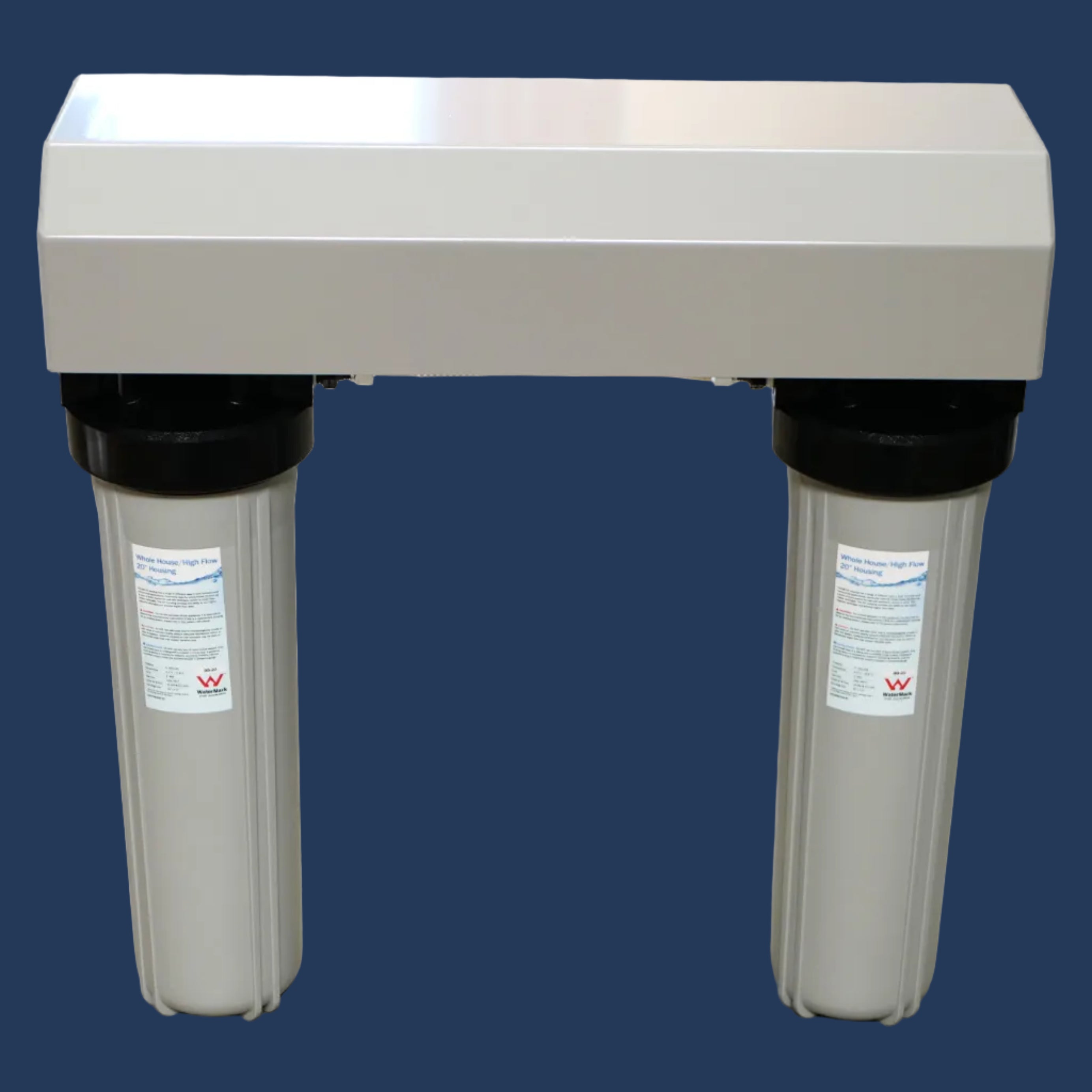

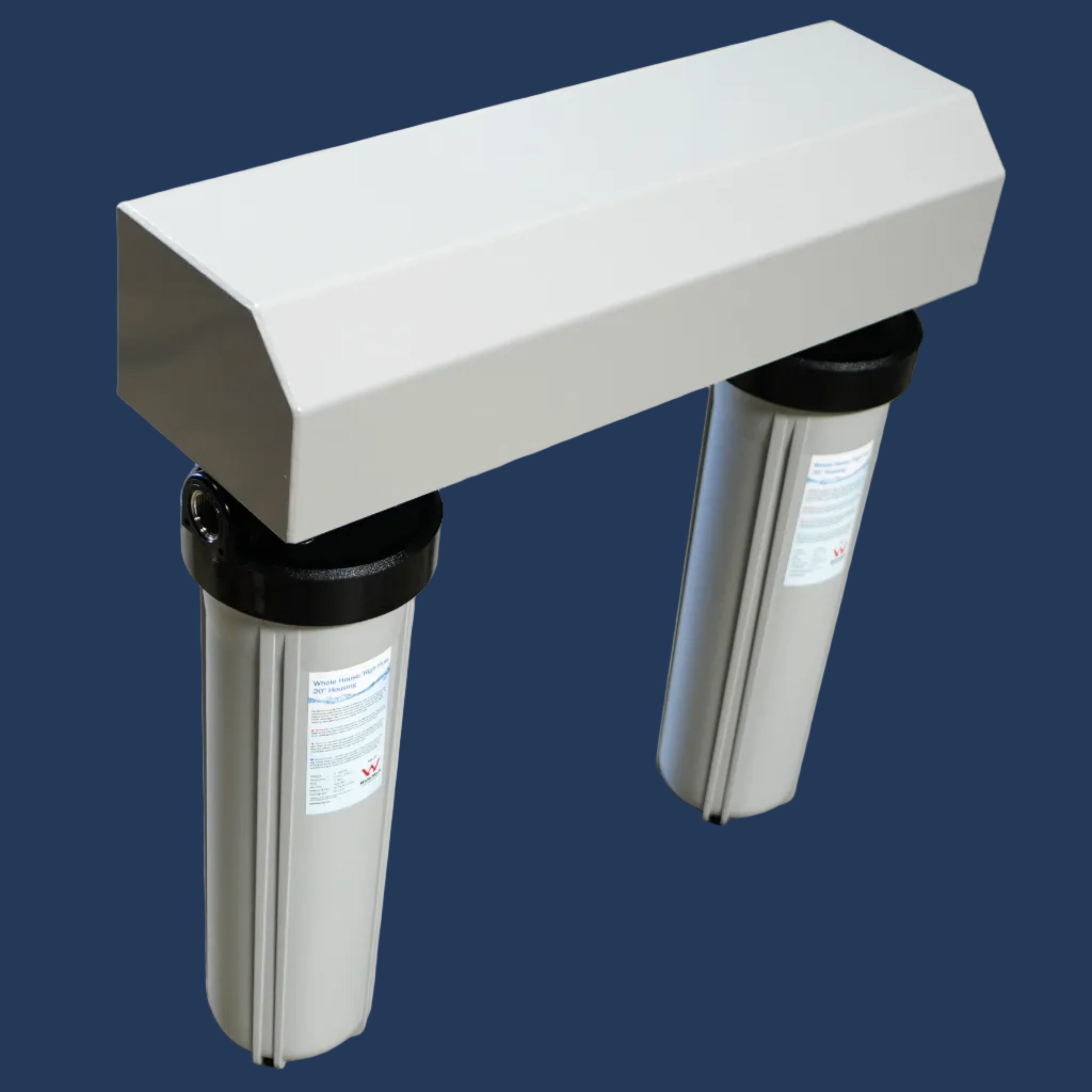

• ✅ Powder-coated aluminium enclosure in two Colourbond options

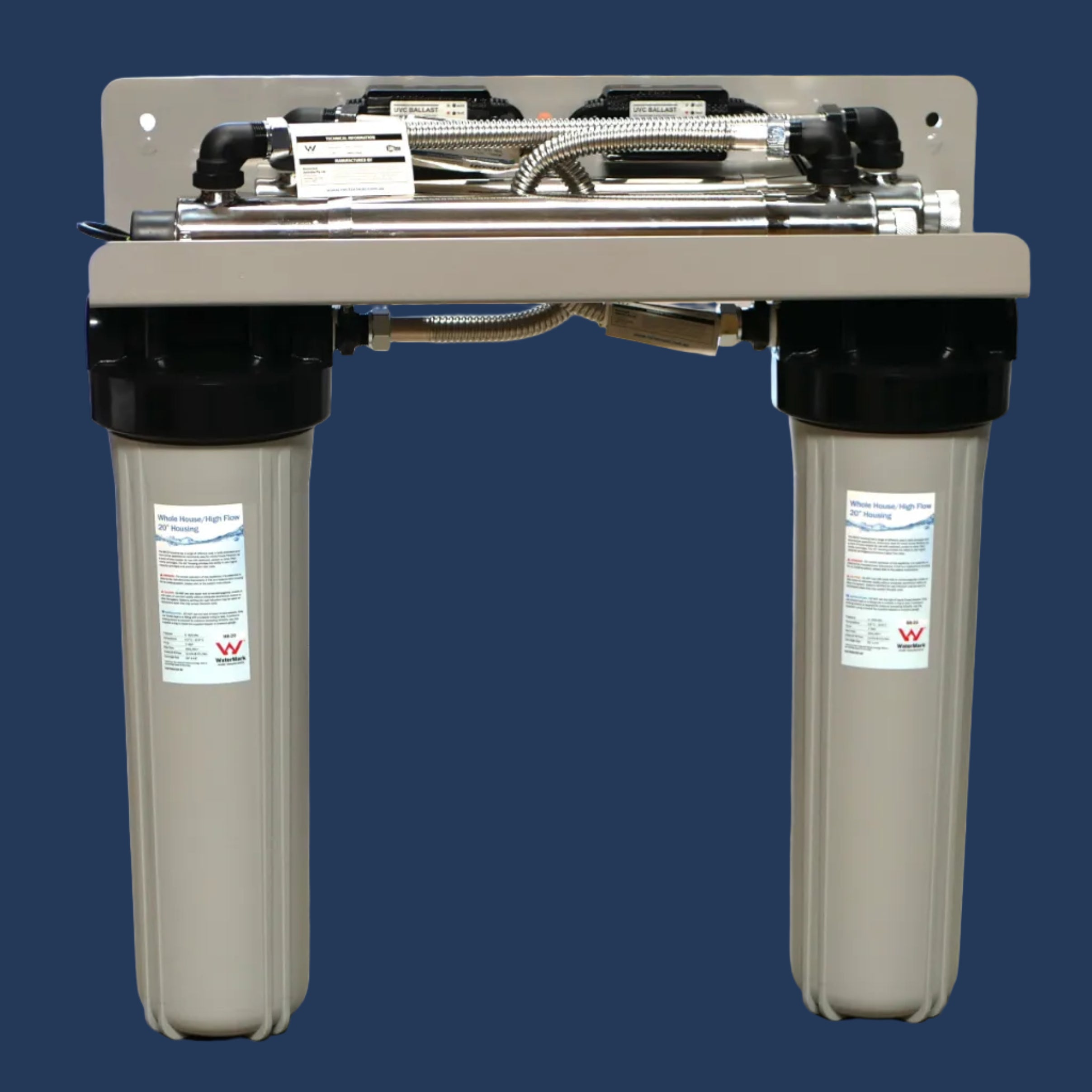

• ✅ Pre-plumbed UV positioning between filters to reduce install time and labour
• ✅ Stainless steel internal hoses and ¾” hot water-rated plumbing
• ✅ Compatible with 1" BSP plumbing (25mm)

Why Choose Dual UV?

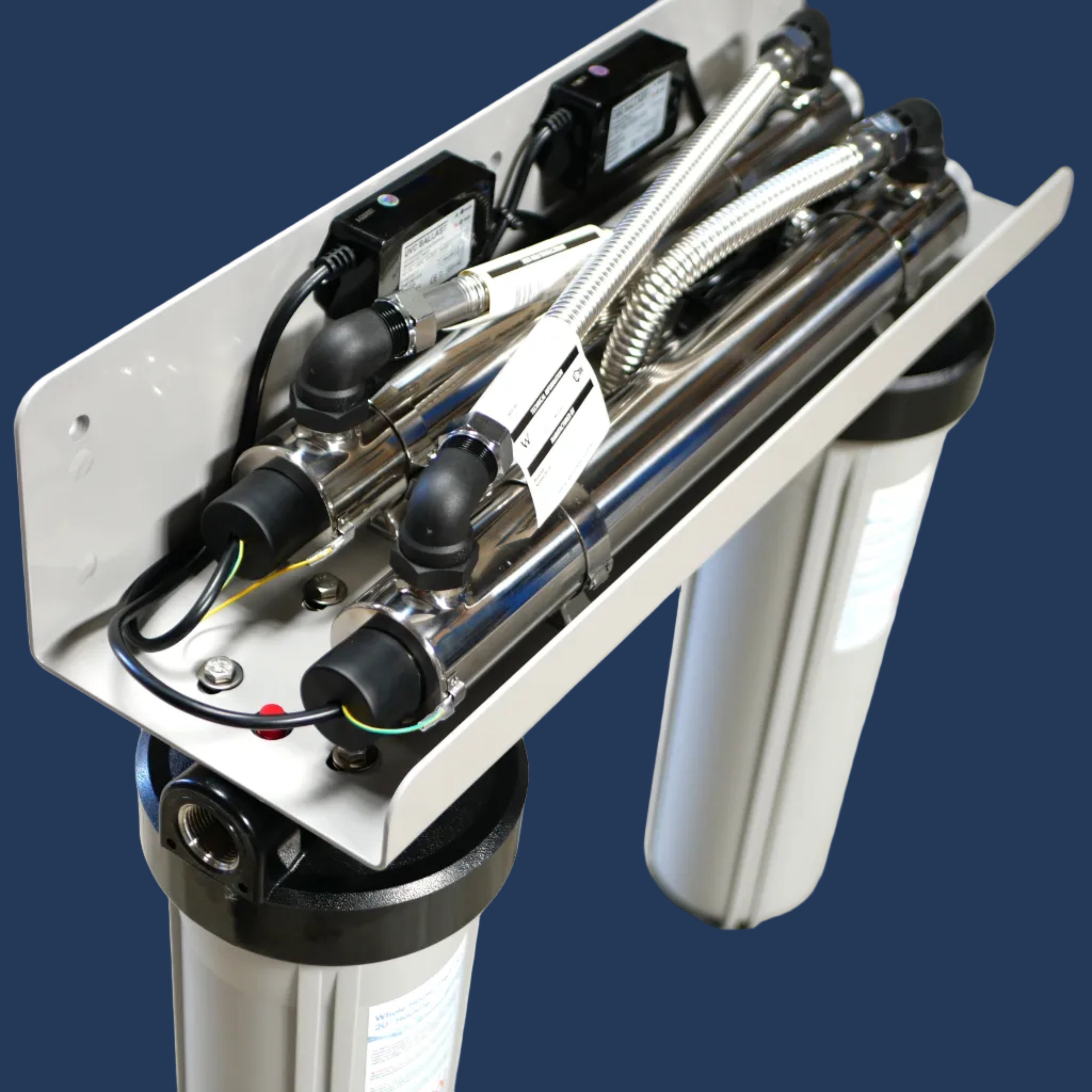

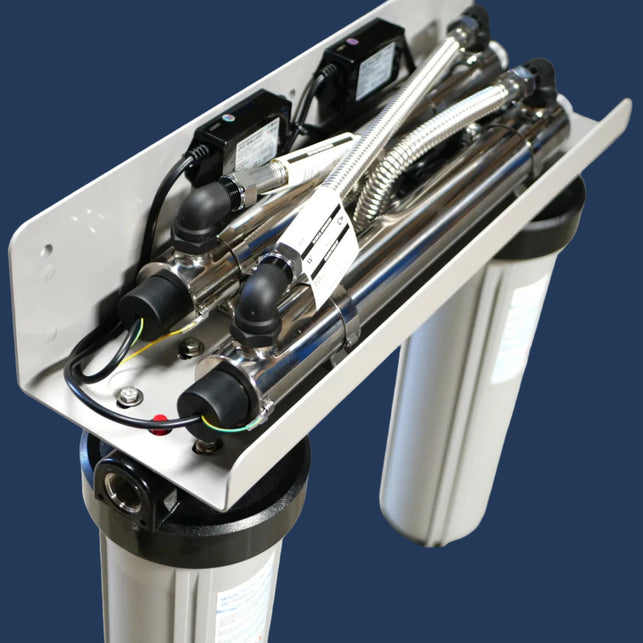

Unlike traditional systems that rely on a single UV light, the WH-002-RF-AW uses two 25W Top Aqua UV lamps in 304 stainless steel housings. This setup:

• ✔️ Offers redundancy – if one lamp fails, the second continues to UV treat water (up to 25 LPM)
• ✔️ Allows for consistent sterilisation up to 50 LPM
• ✔️ Increases safety and reliability for uncertain water sources

4-Stage Filtration Process

1. Sediment Pre-Filter (5 Micron): Removes rust, algae, dirt, and particles. Required before UV for best performance.
2. UV Steriliser #1 (25W): Destroys bacteria, viruses, and protozoa like E. coli, Giardia, and Cryptosporidium.
3. UV Steriliser #2 (25W): Adds redundancy and second-pass sterilisation.
4. Silver Nitrate Carbon Cartridge: Adsorbs taste, odour, VOCs, pesticides, and neutralises residual UV flavour.

Performance Ratings

• UV Treatment (2 x 25W): Up to 50 LPM
• Sediment Filter: Up to 80 LPM
• Carbon Filter: Up to 30 LPM
• Rated to remove: viruses, harmful bacteria, E. coli, Giardia, Cryptosporidium, pesticides, herbicides, VOCs, colour, taste, odour, and suspended solids

System Specifications

• Enclosure: Powder-coated aluminium – Stone Grey (standard), Monument (in stock)
• Custom Colours: Available in Colourbond range (2-week lead time)
• UV Chambers: 304 Stainless Steel (Top Aqua 25W x 2)
• Filter Housings: 20" x 4.5" with Stainless ports
• Plumbing: ¾” hot water-rated with stainless steel internal hoses
• Inlet/Outlet: 1” BSP female (25mm) – no piping supplied
• Power: 2 x 240V power points (600mm cable)
• Dimensions: 75 cm (H) x 68 cm (W) x 21 cm (D)
• Dispatch Time: 4–5 business days from order confirmation

What’s Included

• WH-002-RF-AW complete system – fully assembled
• 2 x 25W Top Aqua UV chambers (304 stainless steel)
• 1 x 5 micron sediment filter (installed)
• 1 x Refillable silver nitrate carbon filter (installed)
• Internal stainless steel plumbing
• Powder-coated weatherproof enclosure
• Installation and maintenance guide

Replacement Cartridges & Maintenance

To maintain water quality and system reliability, follow this schedule:

• Sediment Filter (5 Micron): Replace every 6–12 months
• Silver Nitrate Carbon Cartridge: Replace every 6–12 months
• UV Lamps (25W): Replace every 9,000 hours or every 12 months if run continuously

Compatible Replacement Parts:

• Replacement 5 Micron Sediment Filter
• Silver Nitrate Carbon Cartridge
• Top Aqua 25W UV Lamp (Single)

Certifications & Construction

• ✅ Built using certified, pressure-rated components
• ✅ UV chambers: 304 stainless steel
• ✅ Filter housings: 20" x 4.5" Stainless 316 Watermarked
• ✅ Designed for Australian conditions and natural water sources
