WH 002B-RF-UV

WH 002B-RF-UV is a whole house filter system a non-chlorinated water system for Tanks and dams where the quality of water is unknown or non portable. Water obtained from natural sources such as dams, streams, bores and rainwater tanks may contain microorganisms that can pose a risk to your health. This unit can UV treat the water at approx. 38 Liters per Minute.

Whole House System WH-002B-RF-UV (un-chlorinated water system for Tanks, Dams and soft water bores). This re-fillable carbon cartridge has silver nitrate impregnated carbon, if you use standard carbons in un-chlorinated water filter systems (without a UV steraliser) the carbon simply becomes a bacteria breeding ground, silver nitrate doesn't allow bacteria to grow on it's surfaces.

This systems first stage uses a 20" big blue housing with 1 or 5 micron polyspun sediment filter (your choice)  The second stage uses a 20" big blue housing with a GAC silver carbon cartridge rated for 300,000 litres for chlorine and chemical treatment.

Big Blue housings and are certified to Australian Standard AS3497 and Watermark certification 052014. These Big blue housings are rated to 90 psi pressure and the system includes the two cartridges, two housings, powder coated wall bracket, housings are 1" thread.

This system uses a re-fillable carbon cartridge, this system is very cheap to run as the sediment cartridge and it costs $50 to change and just $60 for the 4 litres (2 kg) of carbon required to re-fill the carbon cartridge.

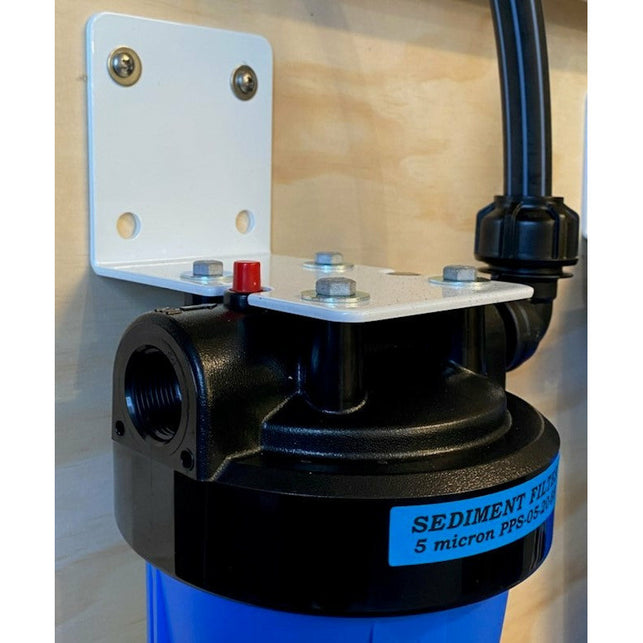

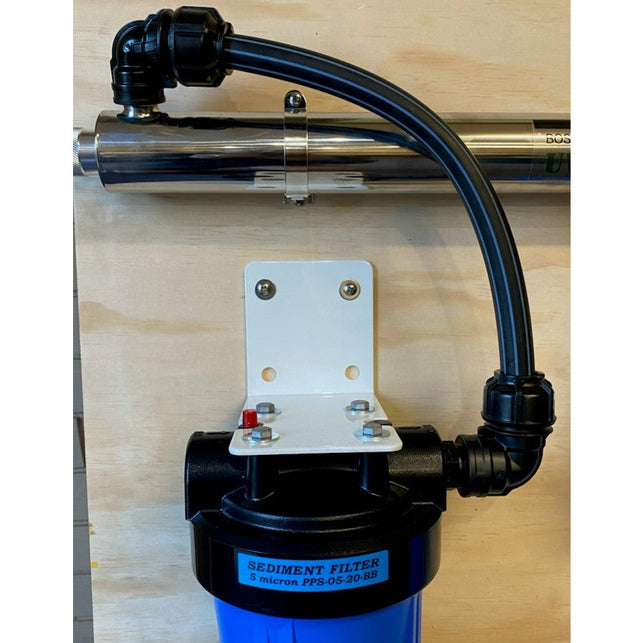

Stage 1- Sediment pre filter ( typically 5 micron) (1 " BSP female connections)

Stage 2- Ultraviolet sterilizer Top aqua 40 watt. 304 Stainless Steel (3/4" BSP male Connections)

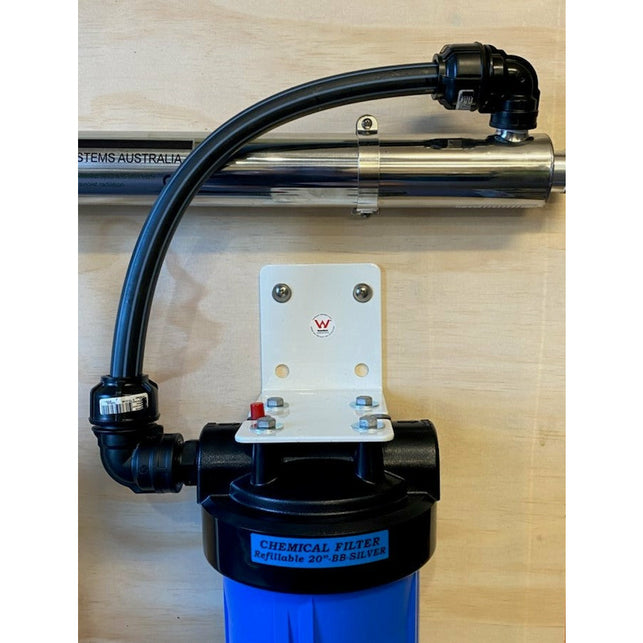

Stage 3- Refillable silver impregnated carbon filter (1" BSP female connections) Optional to have KDF/SIlver GAC which will give Lead and Heavy metals rating (+$60)

Treatment rate specs:

Sediment treatment rate - 50LPM

1 x  40watt UV lights - 38LPM

Carbon Cartridge- 30LPM

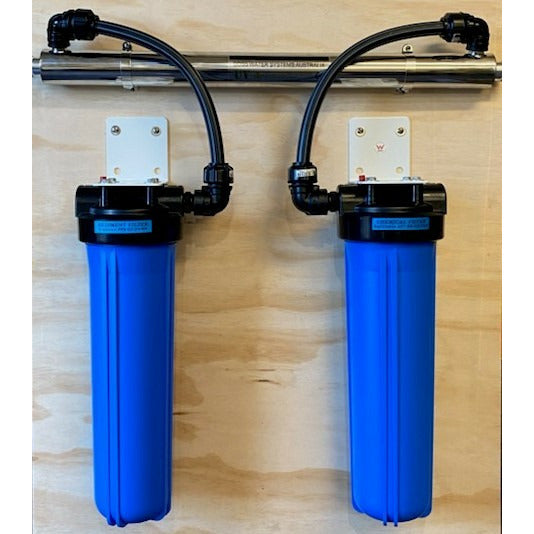

Filter system dimensions of the installation pictured:

90 cm high x 90 cm wide x 21 cm deep

(Please allow and extra 850mm to the side for the uv bulb to be slid in and out of the stainless steel housing)

Replacement consumables:

Sediment Pre filters 6-12months

Carbon filter 6-12months refill or Ready to go cartridge

Uv bulb 9000 Hrs or 12 months if running 24/7

Please note no piping or fittings are supplied with the filter system. These are an optional extra

2 x 25mm poly -3/4" Male BSP fitting ( installed onto sediment filter housing and carbon filter housing)

2 x 25mm poly - 3/4" female BSP fitting (installed onto UV housing)

2 x 900m long  25mm poly pipe (to pipe between sediment filter to UV and UV to carbon filter)

2 x 1"- 3/4" reducing bush (installed into sediment & carbon filter housings)

No fittings are supplied In and out of the system.
