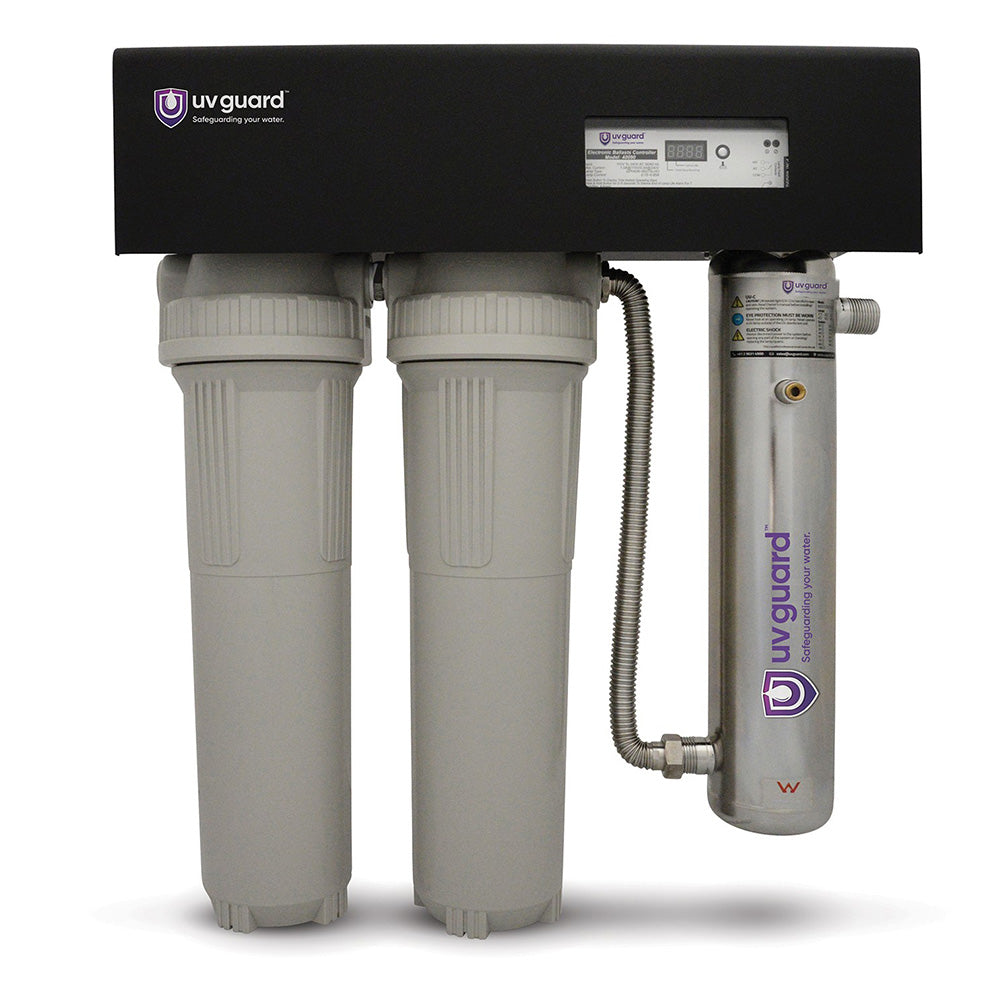

Product Overview

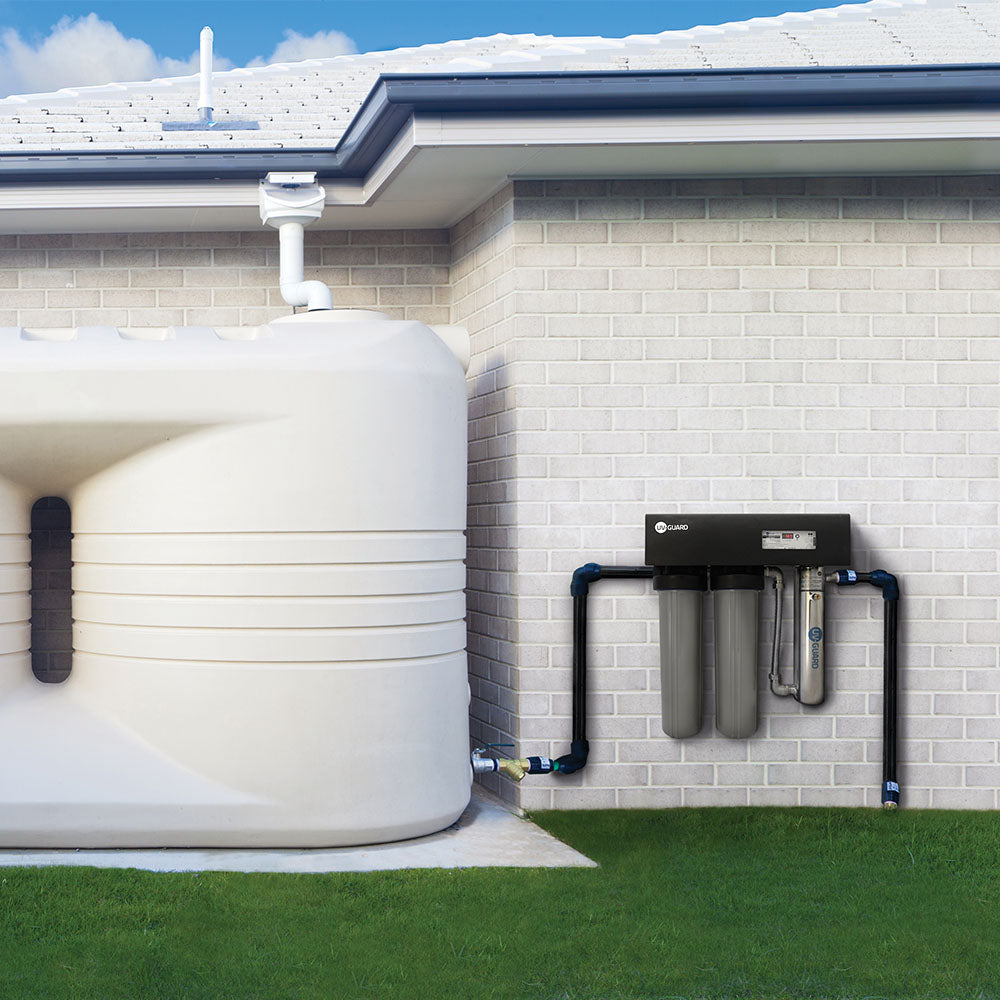

The UV Guard CWP Series is a compact, all-in-one water purification system ideal for outdoor installations. Designed for use with rainwater, bore water, or town supply, it combines sediment filtration, carbon adsorption, and UV disinfection in a single weather-resistant unit.
Whether you're off-grid or looking to improve water quality at home, the CWP Series provides a robust and reliable solution with easy installation and low maintenance.

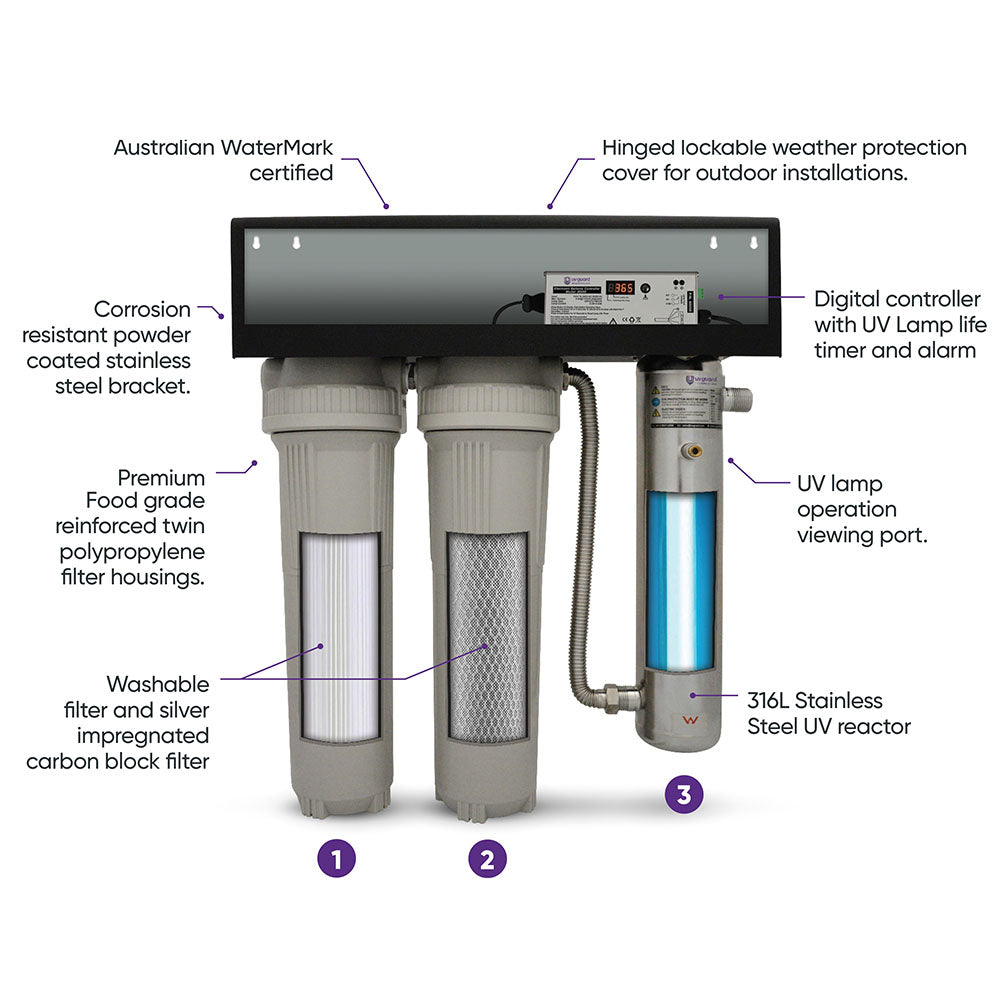

How It Works
Stage 1 – Sediment Filtration
A 20-micron pleated washable filter removes silt, dirt, rust, and other suspended solids.
Stage 2 – Carbon Adsorption
A 5-micron silver-impregnated carbon block filter improves taste, colour, and odour while helping to prevent bacterial growth inside the filter.
Stage 3 – UV Disinfection
A chemical-free UV process eliminates 99.99% of bacteria, viruses, and other pathogens including E. coli, Giardia, and Cryptosporidium. No chlorine or chemicals required.
Key Features
- ✅ Destroys 99.99% of harmful pathogens
- ✅ 316L WaterMark-certified stainless steel UV reactor
- ✅ Digital controller with lamp life timer and alarm
- ✅ Lockable weatherproof cover for outdoor protection
- ✅ Food-grade reinforced twin filter housings
- ✅ Quick and easy installation – pre-assembled
- ✅ Suitable for tank water, off-grid setups, and rural properties
Flow Rates
- Flow @ 16mJ/cm²: 142 LPM
- Flow @ 30mJ/cm²: 77 LPM
- Flow @ 40mJ/cm²: 56 LPM
- UV Lamp: 55W
- Maximum Pressure: 700 kPa
System Specifications
- Inlet: 1” Female BSP (25mm)
- Outlet: 1” Male BSP (25mm)
- Sediment Filter: 20 micron pleated washable
- Carbon Filter: 5 micron silver carbon block
- UV Reactor: WaterMark-certified 316L stainless steel
- Cover: Lockable powder-coated steel
- Controller: Digital with lamp life timer
- Dimensions: W: 60 cm, H: 74 cm, D: 22 cm
What’s Included
- Complete UV Guard CWP System
- UV lamp and digital controller
- Twin filtration housings with filters installed
- Stainless steel mounting bracket
- Lockable weather-resistant cover
- Installation instructions
Replacement Cartridges & Maintenance
To ensure optimum performance, filters and UV lamps should be replaced as follows:
- Sediment Filter (Washable): Clean every 3–6 months, replace as needed
- Carbon Block Filter: Replace every 6–12 months
- UV Lamp: Replace every 12 months for consistent disinfection
Compatible replacement filters: Full replacement set
Certifications & Compliance
- ✅ WaterMark certified UV reactor
- ✅ Designed and supported in Australia
- ✅ Complies with AS/NZS plumbing and electrical safety standards
