Filtermate Fmsc 12-350 Caravan Valve

Write a review

Movement : Valves

Availability :

$71.50

Translation missing: en.products.product.product_variants

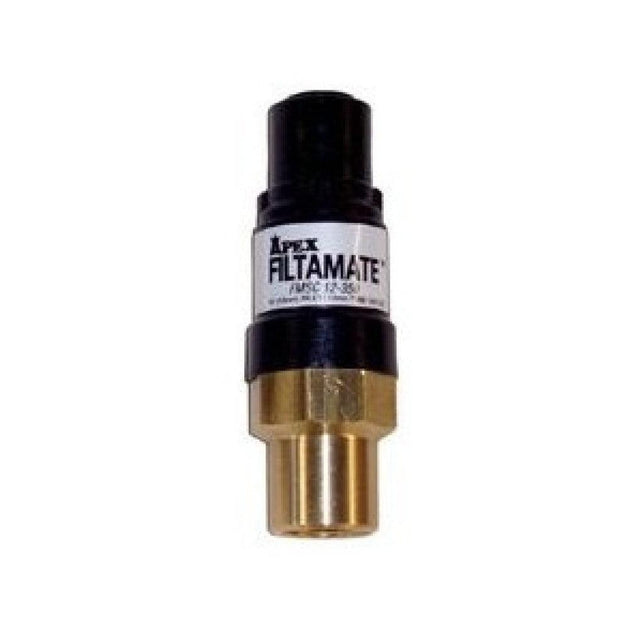

Filtermate FMSC12-350 caravan pressure limiting valve

Apex Filtermate Caravan pressure limiting valve, FMSC 12-350

Inlet, 1/2" BSP female (15mm)

Outlet, 12mm John Guest tube connector.

Length 107mm

Flow rate 15 litres per miinute at 700 kpa (100 psi) inlet pressure.

Outlet pressure 350kpa (50 psi).

Maximum inlet pressure 2000kpa (290psi)

Maximum temperature 60°C

Minimum temperature 1°C

Australian standards AS2845.1 Lic 1621

Watermark Spec 030 Lic W 248
