WH-002-55UV Whole House Water Filtration System – 55 LPM UV & 0.5 Micron Filtration
Product Overview

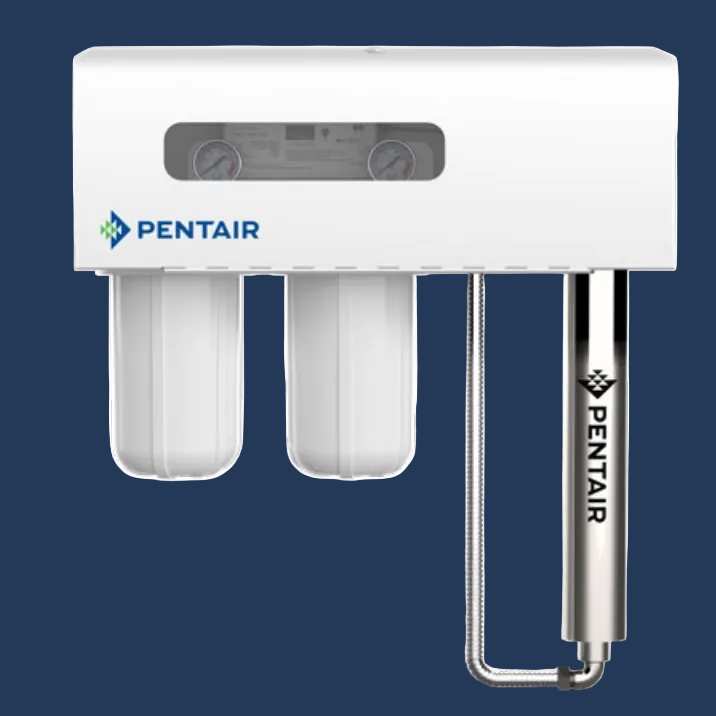

The WH-002-55UV is a compact, high-performance whole house ultraviolet water treatment and microfiltration system designed for small to medium Australian households.
Delivering up to 55 litres per minute, this integrated point-of-entry system combines sediment filtration, activated carbon treatment and ultraviolet disinfection to improve the quality of water supplied throughout your home.
The 0.5 micron filtration configuration provides certified mechanical cyst reduction, while Pentair's ultraviolet technology has been tested to achieve 99.9999% reduction of E. coli under specified laboratory conditions.
Ideal for households using mains water, rainwater or appropriately treated surface water, the UV5505 provides reliable whole house treatment in a more compact configuration than the larger UV7505 system.
Key Benefits at a Glance
- ✅ 55 LPM treatment capacity – designed for small to medium households
- ✅ 0.5 micron filtration configuration for fine-particle and certified cyst reduction
- ✅ UV disinfection tested for 99.9999% E. coli reduction
- ✅ Three-stage water treatment – sediment, carbon and ultraviolet
- ✅ Reduces rust, dirt, sediment, chlorine, unpleasant taste and odour
- ✅ Compact whole house system for installations with limited space
- ✅ Chemical-free UV disinfection without adding chemical disinfectants
- ✅ Integrated UV lamp countdown timer and alarm
- ✅ Built-in pressure gauges to help monitor filter condition
- ✅ 1" BSP connections for connection to household plumbing
- ✅ Durable Pentair manufactured filtration components
Why Choose Pentair UV Filtration?
The WH-002-55UV combines advanced filtration and ultraviolet water treatment in a convenient system designed to provide cleaner, better-tasting water throughout smaller households.
- ✔️ Compact design: Ideal where a 75 LPM system is not required
- ✔️ Certified cyst reduction: Specified filtration configuration reduces Cryptosporidium and Giardia cysts by mechanical means
- ✔️ UV disinfection: Inactivates susceptible waterborne microorganisms without chemical dosing
- ✔️ Activated carbon treatment: Reduces chlorine taste and unpleasant odours
- ✔️ Convenient maintenance: Integrated gauges and lamp countdown simplify system monitoring
3-Stage Water Treatment Process
- Stage 1 – Sediment Pre-Filter: Pentair sediment cartridge reduces rust, dirt, silt and suspended particles, protecting downstream components.
- Stage 2 – Carbon Filtration: Pentair carbon cartridge reduces chlorine taste and odour and contributes to the model's certified fine filtration performance.
- Stage 3 – Ultraviolet Disinfection: Water flows through the Pentair UV chamber, where ultraviolet light inactivates susceptible microorganisms without chemical dosing.
Performance Ratings
- Treatment Flow Rate: 55 LPM
- Filtration Rating: 0.5 Micron
- E. coli Reduction: 99.9999% under specified laboratory testing conditions
- Cyst Reduction: NSF/ANSI Standard 53 certified mechanical cyst reduction for specified cartridge configuration
- Sediment Reduction: Rust, dirt, silt and suspended solids
- Carbon Treatment: Chlorine taste and odour reduction
System Specifications
- Manufacturer: Pentair
- Application: Whole House Point-of-Entry Water Treatment
- Recommended Household: Small to Medium
- Maximum Treatment Flow: 55 Litres per Minute
- Filter Configuration: 10" Big Blue Sediment and Carbon
- Filtration Rating: 0.5 Micron
- Inlet/Outlet: 1" BSP (25mm)
- Working Water Pressure: 210–500 kPa
- Working Water Temperature: 5°C–38°C
- Ambient Temperature: 2°C–49°C
- Power Supply: 230V AC / 50Hz
- Power Consumption: 48W

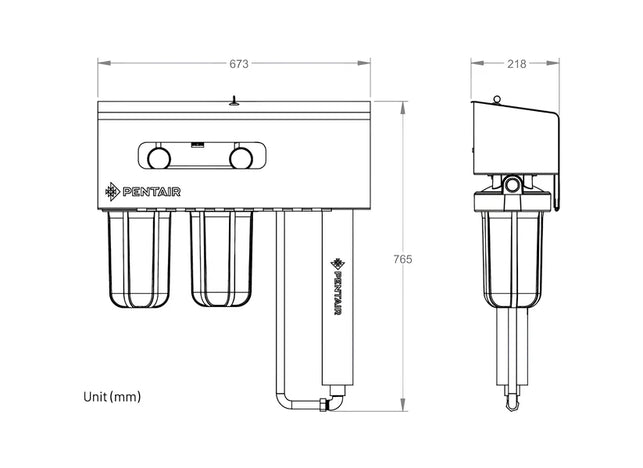

- Dimensions (UV55 Technical Drawing): 673mm W x 765mm H x 218mm D
- Dry Weight: 22kg
- Operating Weight: 32kg
- UV Monitoring: Electronic Countdown Timer and Alarm
- Pressure Gauges: Included
Recommended Inlet Water Quality: Turbidity not exceeding 5 NTU, dissolved iron 0.3 mg/L, hydrogen sulphide 0.05 mg/L, suspended solids 10 mg/L and manganese 0.05 mg/L. Additional pre-treatment may be required for untreated water sources.
What's Included
- 1 x Whole House Treatment System
- 1 x Sediment Cartridge
- 1 x Carbon Cartridge
- 2 x 10" Filtration Housings
- 1 x Integrated Pentair UV Treatment Chamber and Lamp
- UV Power Supply with Digital Lamp Countdown and Alarm
- Integrated Pressure Gauges
- Protective System Cover and Assembly
Replacement Cartridges & Maintenance
To maintain effective filtration and UV performance, regular servicing and replacement of filter cartridges are recommended.
- Sediment Filter: Replace up to every 12 months depending on water conditions
- Carbon Filter: Replace up to every 12 months depending on water quality and usage
- UV Lamp: Replace according to Pentair service recommendations and the lamp countdown indicator
- UV Chamber: Inspect and clean quartz sleeve as required during servicing
Replacement Cartridges:
- Stage 1 – 10" x 4.5" Sediment Filter
- Stage 2 – 10" x 4.5" Nano Silver Carbon Filter
Certifications & Construction
- ✅ Australian WaterMark: WWM-022617_03
- ✅ NSF/ANSI Standard 53: Certified mechanical cyst reduction for specified cartridge configuration
- ✅ NSF/ANSI Standard 42: Applicable certified components
- ✅ CSA B483.1: Applicable certified components
- ✅ Electrical Safety: AS/NZS 60335.1:2019 and AS/NZS 60335.2.109:2017
- ✅ EMC: CISPR 15:2018
- ✅ Designed for Australian domestic water treatment applications
Product Brochure & Installation
Download Pentair UV5505 Product Brochure (PDF)
Watch Pentair UV Filtration Installation Video
Installation Note: Installation should be undertaken by a suitably qualified plumber in accordance with Australian requirements. Protect the system from freezing and ensure the water supply meets the manufacturer's inlet water quality requirements.
