Product Overview

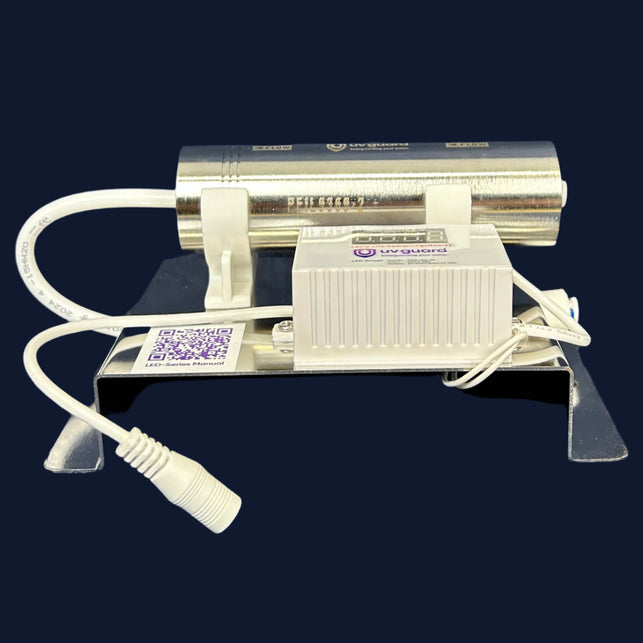

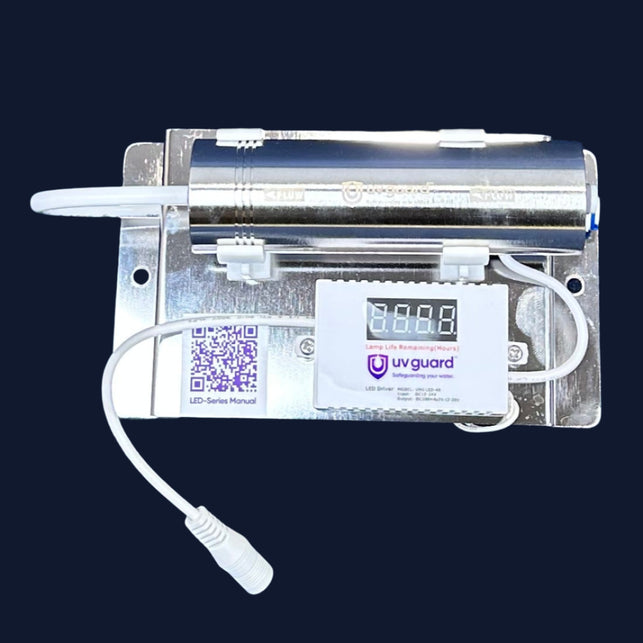

The UV Guard LEDH-4 is a next-generation chemical-free UV disinfection system designed for residential use. Utilising energy-efficient LED technology, it provides over 1 million litres of safe, great-tasting drinking water straight from your tap.
This compact system is ideal for under-sink installation and connects easily to a dedicated drinking water tap, offering an eco-friendly solution for clean water without the use of mercury or chemicals.
How It Works
LED UV Disinfection
As water passes through the UV disinfection chamber, powerful LEDs emit ultraviolet light that destroys 99.99% of harmful microorganisms including E. coli, Giardia, and Cryptosporidium. Unlike conventional mercury-based UV systems, the LED-Home Series reaches full intensity instantly and operates efficiently with unlimited on/off cycles.
Key Features
- ✅ Destroys 99.99% of pathogens including E. coli and Cryptosporidium

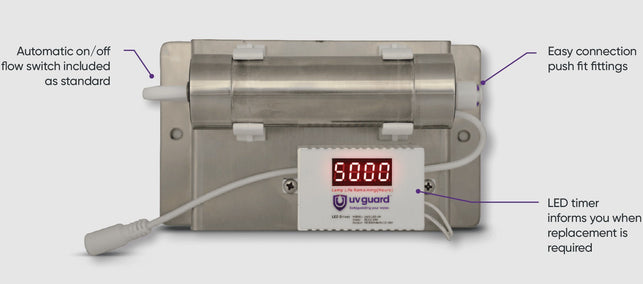

- ✅ LED flow switch turns system on/off automatically with water flow
- ✅ Instant-on UV intensity – no warm-up time
- ✅ Over 1 million litres of safe drinking water
- ✅ No mercury, no chemicals, no glass components
- ✅ Compact design for easy under-sink installation
- ✅ LED life timer indicates when replacement is due
Flow Rates
- Flow Rate: 4 LPM
- Bacteria Reduction: 99.9%
System Specifications
- Inlet/Outlet Connections: ¼” Push Fit Fittings
- LED Technology: No mercury, no heat generation
- LED Life Timer: Alerts when system needs replacing
- Mounting: Under-sink installation
- Operation: Flow switch with automatic on/off
- Dimensions: Compact footprint for tight spaces
What’s Included
- UV Guard LED-Home Series UV disinfection unit
- LED module with integrated flow switch
- ¼” push fit inlet/outlet fittings
- LED life timer indicator
- Power Supply
- Installation guide
Replacement & Maintenance
The LED module is designed for long-term use, delivering over 1 million litres of treated water. When the LED life timer indicates, simply replace the unit.
Certifications & Compliance
- ✅ Designed and supported in Australia
- ✅ Environmentally friendly – no mercury or hazardous materials
- ✅ Complies with Australian plumbing safety guidelines
