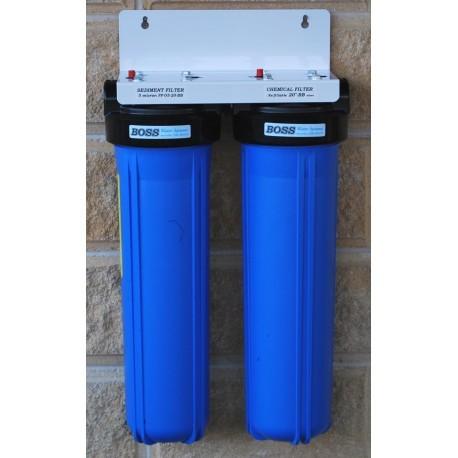

Wh-002b Whole House System

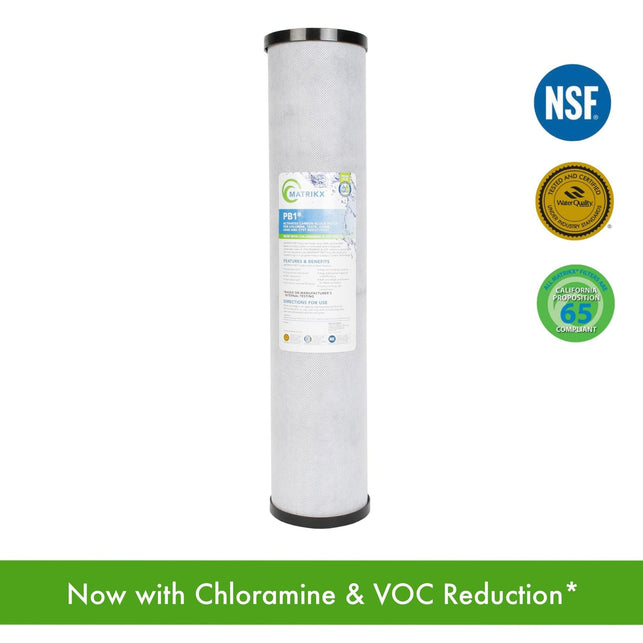

This systems first stage uses a 20" big blue housing with a 1, 5 or 20 micron polyspun sediment filter (your choice) the second stage uses a 20" big blue housing with a Matrikx pB1 20" x 4.5" extruded carbon cartridge, 0.5 micron Giardia and cryptosporidium cysts, chlorine treatment for 158,000 litres and lead treatment 64000 litres. Using the 20" big blue/white sediment cartridge this system is well suited to areas where the water is normal in sediment loads. Pleated sediment filters have the advantage of being cleanable several times. These housings are a Taiwanese copy of the Genuine PENTEK big blues and are certified to Australian Standard AS3497. These Big blue housings are rated to 90 psi pressure and the system includes the two cartridges, two housings, powder coated wall bracket, housings are 1" thread Optional Stainless Steel Bracket plus $25.00 1 Year Warranty, 1" AGA Ball valve optional +$20.00.
720 mm Tall (allow an extra 50mm below the housings to change the cartridges)
400 mm Wide
200 mm Deep
If you would like to purchase extra cartridges or parts with the system here are the links:
To download the spec sheet for the Matrikx pB1 (06-425-200-20) click here
Product comes complete, ready for installation.
